Hashtable Math

As is evident from the previous article, I am currently building a hash table. I made my hash table rather fancy and used lots of SIMD instructions. The thing is, this hashtable ended up not being very fast at all. In fact, I made an incredible simple C implementation and it outperformed my facy C++ version in all tests.

The whole thing is about 100 lines, including whitespace and is very simple. Below is the lookup code, which encapsulates pretty much all the hashtable-specific logic. The full source can be found The full code can be found here.

struct entry *table_get_slot(table *tbl, key_t k)
{
        size_t h = hash(&k, sizeof(key_t));
        for (size_t i = h % tbl->capacity; true; i = (i + 1) % tbl->capacity) {
                struct entry *e = &tbl->buf[i];
                if (e->meta == CTRL_EMPTY) {
                        return e;
                } else if (e->meta == CTRL_DEL) {
                        continue;
                } else if (e->key == k) {
                        return e;
                }
        }
}

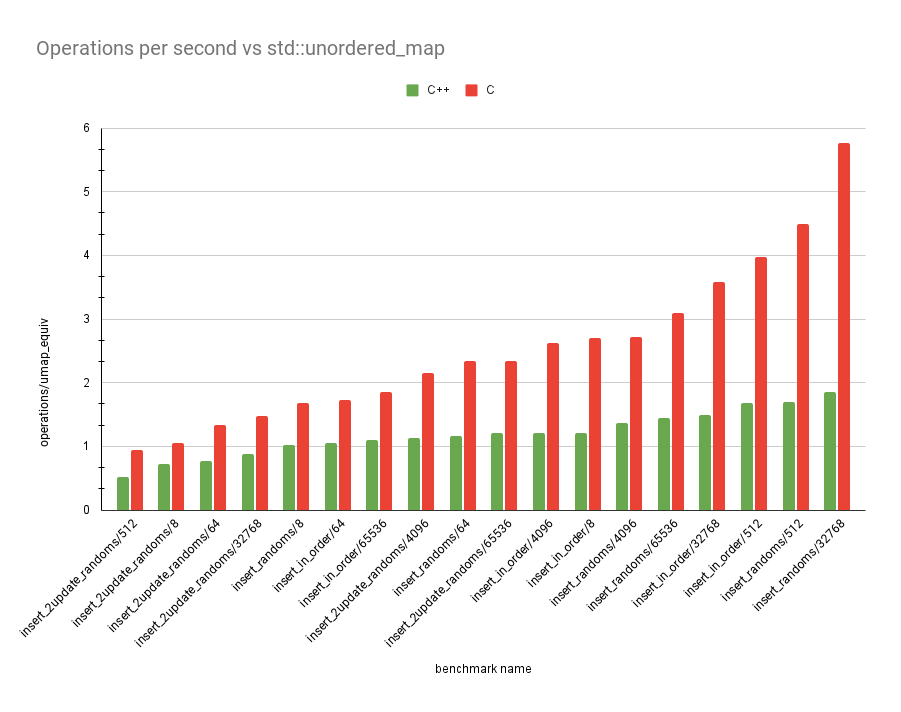

The graph above is in operations performed for every equivalent std::unordered_map operation. The tests are the same as last time. Again, insert_2update_randoms performs the worst, but yo ucan see how much better the C version is overall!

This got me thinking about why this version might be so much faster. I think it's because my version does the following:

1. Find the associated control chunk

2. Do a bunch of vector instructions to generate a bitmask

3. Consume the bitmask with tzcnt (3 cycles at a time)

The simple C version does the following:

1. Find the associated element

2. Iterate over the elements in a predictable way with pointer offsets (1 cycle).

There are all sorts of benefits for the latter. For example, we don't fill up the instruction buffer so OOO hardware can prefetch more clevery if it ever needs to. But I think more importantly than something like that, we just do less compute than the original version since we hardly ever probe anyway. If we do less than 3 probes 99% of the time, we may as well use a uint8x4 instead of a uint8x16!

Working out the average number of hashtable collisions

I've always wanted to do this math. So I finally sat down and worked it all out. It could be all wrong, but I looked it up and I got the right answer. Email me if it's wrong! Disclaimer, I wrote this really late at night and I'm pretty sure I made a mistake about halfway through and just got lucky. You can skip to the last section if you just want the results of it all.

There are two questions to ask here:

1. What is the average number of collisions when our hashtable is l full?

2. What is the average number of collisions for a hashtable with load factor L?

I'll try and use l and "load" for the proportion of our hashmap that is currently full right now and L and "load factor" for the maximum allowed l before we trigger a realloc. I'm using code snippets because I generate these blogs from markdown. I'm using images for the math.

So, we're looking for an empty cell to put our entry. Let's say we've probed i entries already. What is the chance that the next entry is empty?

I'm skipping a few steps here, but hopefully it's still intuitable. Normally, the chance of finding an element would be \( (1 - l) / 1 \). Remember, the hashtable is \( l \) full, so we just take the empty part, which is \( 1 - l \) and divide it by the total size of the hashtable, which is just \( 1 \). If we know that \( i \) are occupied, we remove \( i \) from the total capacity and \( l \). An example would be like if we had 10 elements in the table and 4 were full. If we've checked 2 and they're both full we know the next one has a chance of \( (4 - 2) / (10 - 2) \) of being empty. Since we're taking the capacity to be \( 1 \) though, we just say that there is some constant \( d \) that represents some portion of the capacity we've removed. For our example, we could say \( d \) is \( 0.1 \) and get the same values.

(1 - 0.1 * 2) / (1 - 0.1 * 2) == (4 - 2) / (10 - 2)

In similar logic which I will not explain much in depth, the chance of getting i consecutively occupied cells is just the product of the chance of getting all previous cells occupied. The calculation is just the opposite of what we had above.

So the chance that we will find the empty cell after exactly \( i \) probes is these two probabilities multiplied together.

I've taken an extra step with the above and rearranged the first equation. Now, as the hashmap size tends towards infinity, the step factor \( d \) becomes closer and closer to 0. When \( d \) is 0, the equation is just equivalent to that small little thing on the right!

That's pretty useless though, because we want to find the chance of getting a result in \( i \) probes or fewer. So we want to know the chance of getting it in \( 1 \) probe or \( 2 \) probes or \( 3 \) or \( 4 \) or \( 5 \) probes etc. etc. all the way to \( i \). First, the chance of geting our slot in less than \( i \) steps is the sum of all the chances of getting a miss before \( i \).

And if we rewrite this with \( i - 1 \) at the top, we can take it as a geometric series and find a closed form of the whole thing, including the chance of a hit bit.

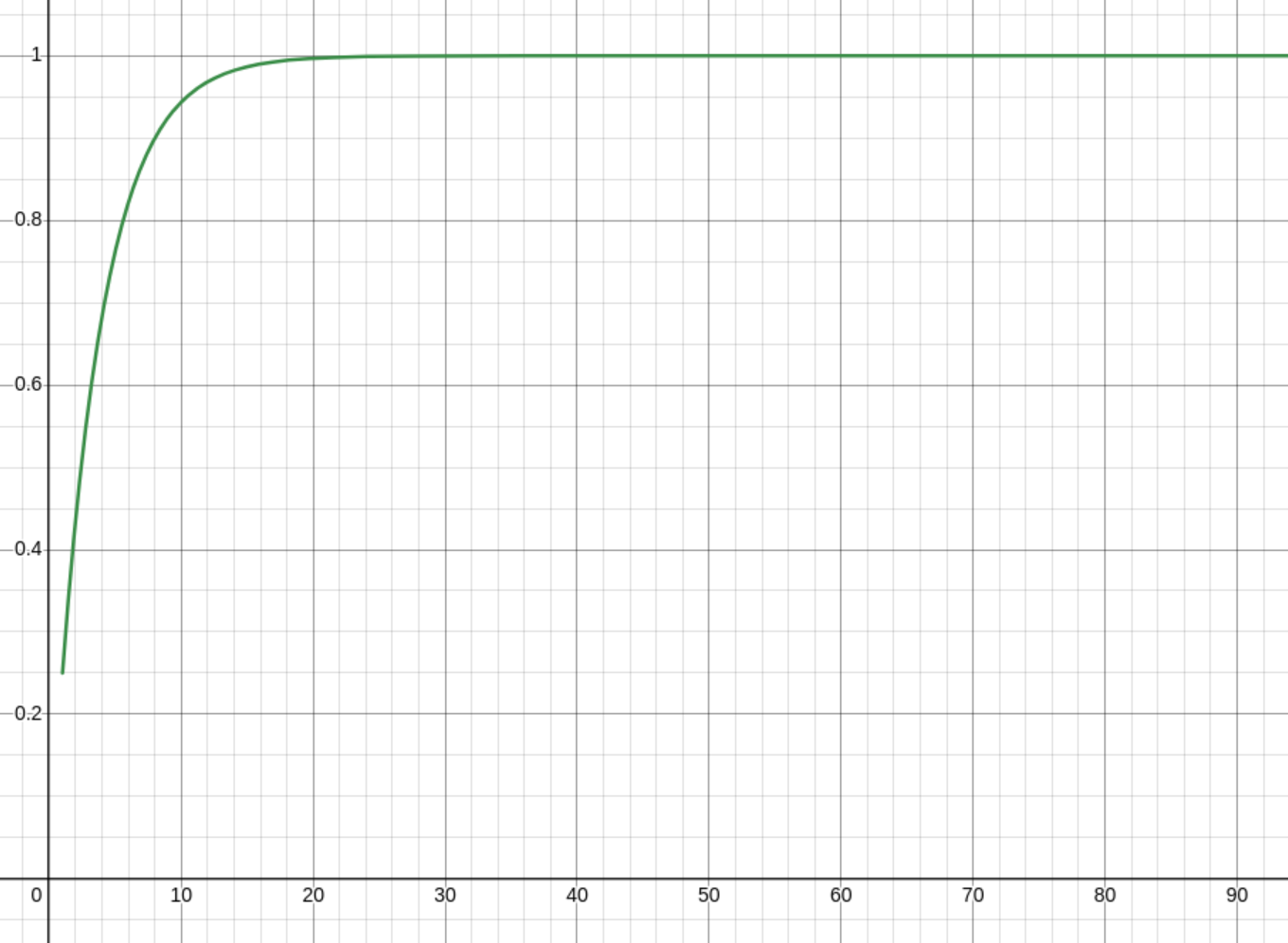

This tells us the chance of finding an empty slot after doing \( i \) probes. The graph of that looks like this for \( l = 0.75 \)

The chance of reaching the \( i \)th probe is just \( L^{i - 1} \). There's no math for that, it's just the opposite of that. Starts at 0.75 and goes down to 0, instead of the other way round.

So what's the average cost of an insertion? Well, that's the chance of getting to probe \( i \) multiplied by the cost of probing \( i \) times... which is just \( i \). I notice now while writing this article that I've done a little more work than I need. I'm not really sure how this one worked out actually, since the intuition isn't quite right here...

Regardless, the probe cost calculation looks like this.

If you're clever, you'll notice that this is a geometric sequence that has been differentiated! So we can find \( \frac{d}{dL} \) for some geometric series, and this is going to be our summation closed form!

This is for reaching only up to the \( x \)th probe though. For us, we want to consider the entire space all the way up to infinity. Taking the limit of \( x \) to infinity gives us

Tada! ✨ That's the cost of an insertion at L load. (I know I said l would be the load, oops). I have to remember to go back and clean up that mistake earlier. I can't remember exactly my thinking now, but to me, you don't need to do that previous summation, just the one above. Anyway.

Finally, as I said before, we are considering the average cost for all insertions to our map in the range 0..L. So we should take the average insertion cost over the allocations lifetime. This is just the integral over L.

It doesn't work though! 😔

So that's all well and good. And I looked it up and this stack overflow post tells me I'm right. I was really happy about this (even though it looks like my math will need an errata soon). The thing is, that's not how my actual hash table behaves... Like at all.

You can find the source code of a hashtable in the folder that you're in right now. It's at `table.c` and `table.h`. This hashtable is thoroughly tested against hundreds of millions of random operations on an oracle map. It works. It comes with an option to set the load factor and keeps track of the number of probes it's done in its lifetime.

I wrote some code that finds out both the probe cost at a given load l and some code that finds out the probe cost across the hashmap allocation's lifetime for a given load-factor L. You can find the full source here. It's pretty simple though, for the first case, we just get a number really close to the max capacity and fill a map all the way till its full.

for (double l = 0.01; l < 1; l += 0.01) {
        table tbl;
        table_init(&tbl, CAPACITY, l);

        int nr_insert = (int)((double)CAPACITY * l);
        for (int n = 0; n < nr_insert; ++n) {
                table_insert(&tbl, rand(), 0);
        }
        printf("(%f,%f),", l, (double)tbl.nr_probes / (double)nr_insert);

        table_free(&tbl);
}

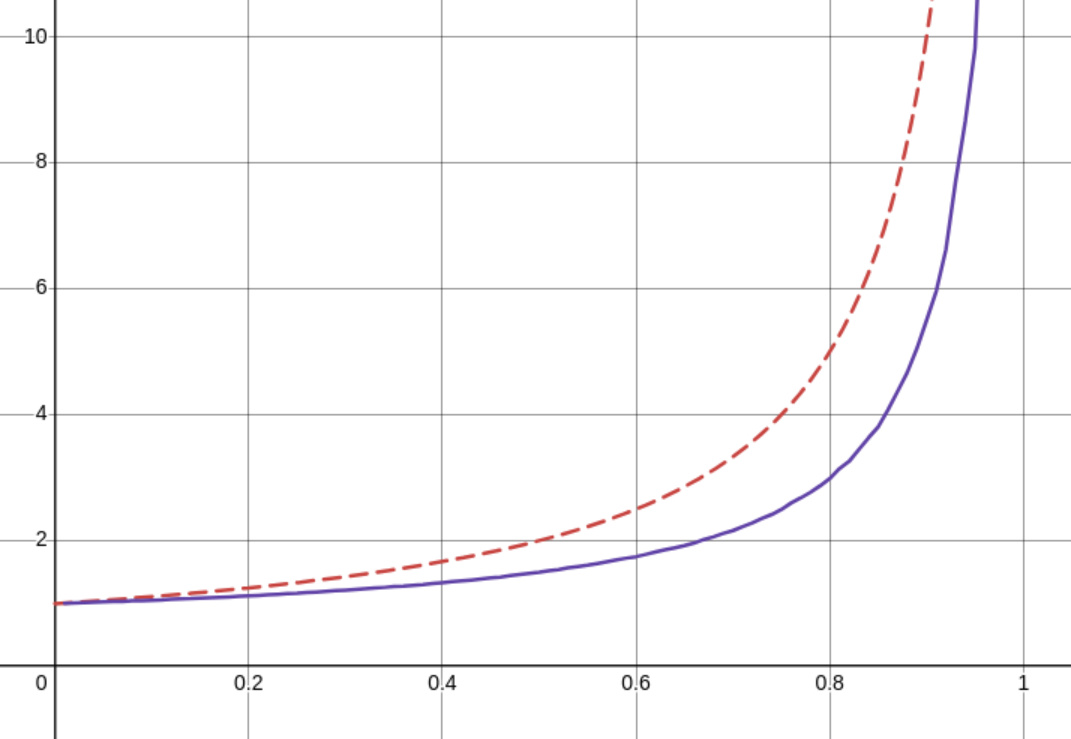

This graph looks like this

The red, dashed line shows what I calculated the average number of probes to theoretically be and the purple shows what it actually is. I'm actually not so bothered about what I can do with this data, I'm more bothered that I screwed up the math.

Next, we have the average cost at a specific load. This one I ran this test at an excessive number of iterations (hoping for a smoother graph) but it always remained very jittery

table tbl;
table_init(&tbl, CAPACITY, 0.99999999);

int nr_insert = CAPACITY - 1;
for (int n = 0; n < nr_insert; ++n) {
        size_t l = (size_t)(table_load(&tbl) * STEPS + 0.5);
        size_t old_nr_probes = tbl.nr_probes;
        table_insert(&tbl, rand(), 0);
        size_t nr_probes = tbl.nr_probes - old_nr_probes;
        probes_at[l] =
                (probes_at[l] * (double)n + (double)nr_probes) / ((double)n + 1);
}

table_free(&tbl);

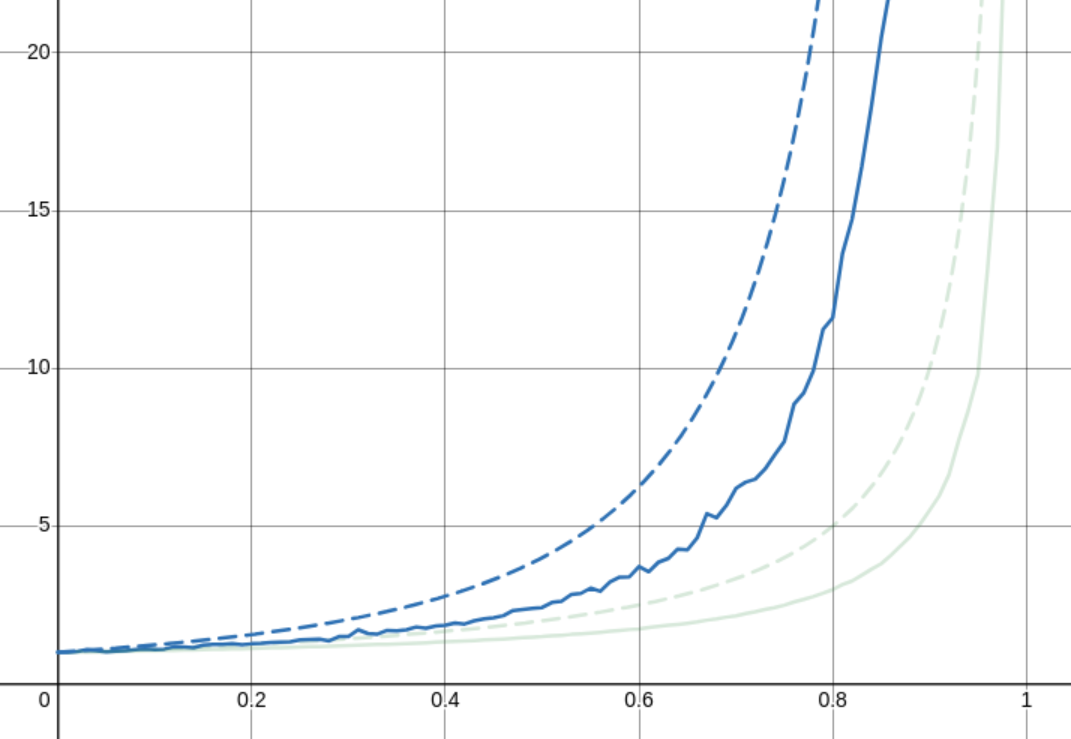

This test fills a map of 1000 elements millions of times over and updates a big map of (l, cost) pairs. This one should behave like 1 / (1 - x)^2.

As you can see, also not quite right. But what's strange here too is that even though this is the average over something like 100 million updates, the line is still very jittery. I really have no idea what's causing this, because it's not reproducable jitter.

So what's next?

Well, a few things. There are lots of questions yet to be answered

1. Why do the theoretical results not match up... at all?

2. Does the probing method affect the practically obtained results?

3. Why is the graph of load vs probe count so jittery?

4. How can we use all this data to make a faster hashtable?

I hope to answer all these questions soon! I suspect this series is not going to finish any time soon.
